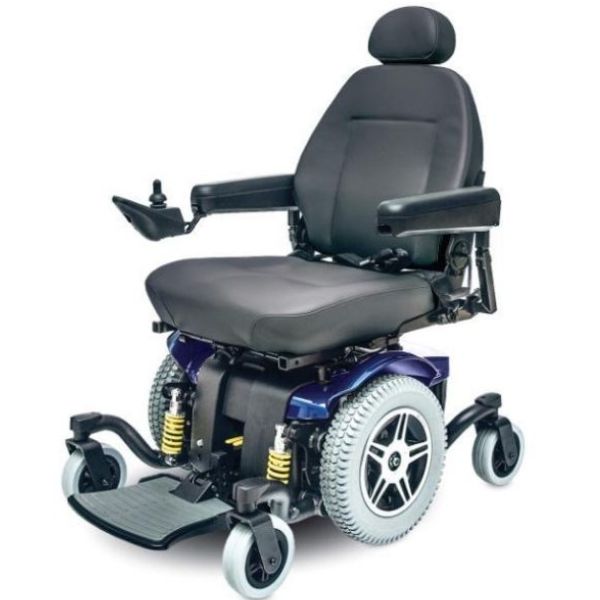

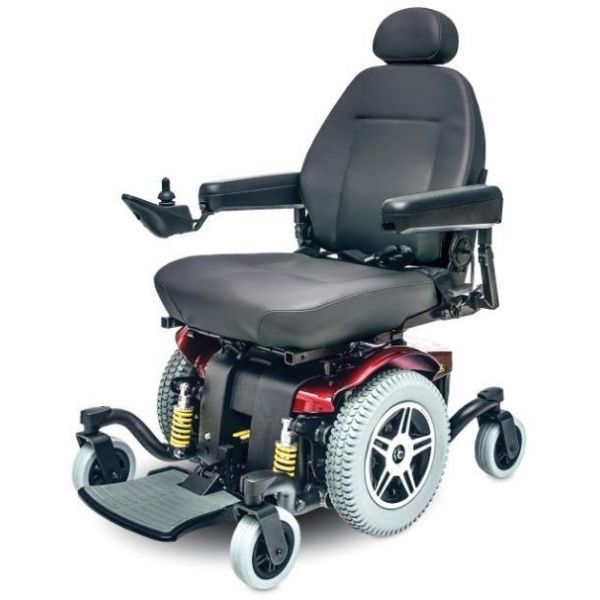

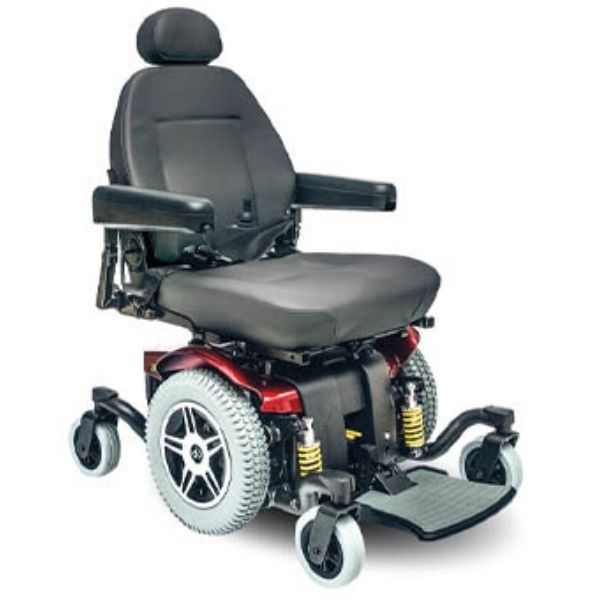

Jazzy 614 HD Power Chair J614HD by Pride Mobility
If you're looking for a mid-wheel drive power chair capable of carrying large weight and have sleek suspension mechanism to give you a smooth ride, then the Pride Mobility Jazzy 614 HD Mid-Wheel Drive Power Chair should be the one to grab your attention! This unit is a Jazzy series lineup and is one of the most popular power chairs offered by Pride Mobility.
This is a heavy duty unit which can support up to 450 lbs and still provide great flexibility while in use. So, if you're looking for just that, then this power chair by Pride Mobility is what we recommend for you!
HIGH-END SUSPENSION SYSTEM FOR EXTRA COMFORT:
The suspension mechanism on this unit is known as Active-Trac ATX suspension, which provides high level of comfort when you're going over uneven terrain, making sure you get the smoothest ride possible. The independent front caster wheels on this heavy-duty, mid wheel drive power chair can be raised and lowered according to your preference enabling you to rapidly adjust for changes in the terrain and make transitions more smoothly.

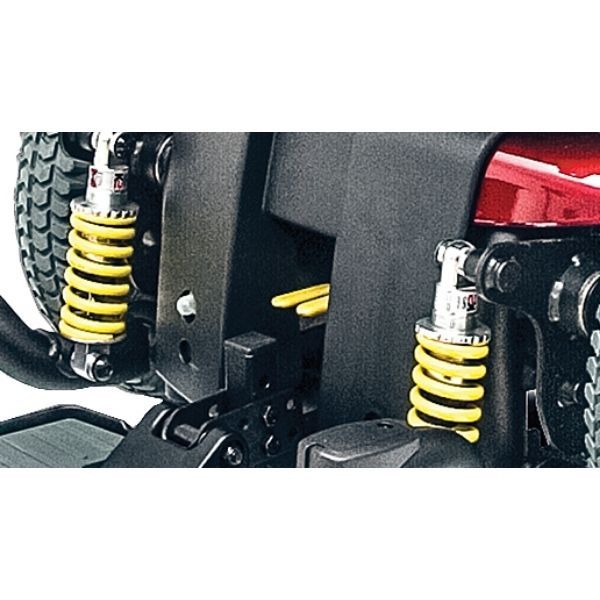

In addition, this power chair comes with independent drive wheel suspension. Each independent drive wheel is supported by a dynamic spring-strut dampening system, which helps decrease the vibrations and bumps brought on by the road surface.
BUILT WITH COMFORT IN MIND:

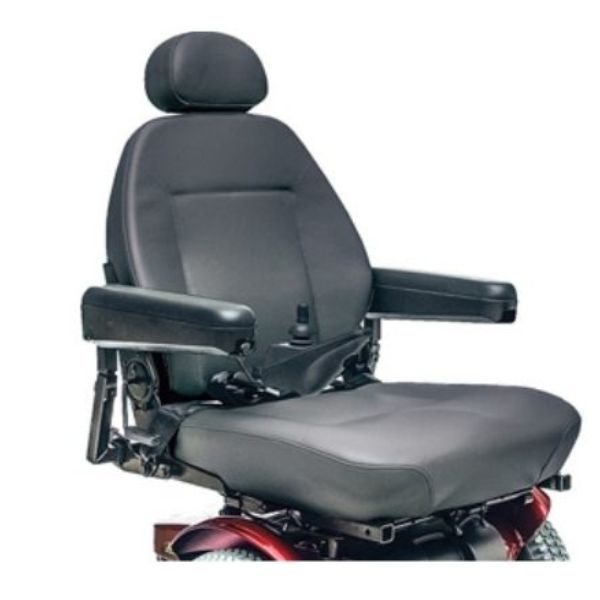

This unit comes in 3 different seating choices in 18" x 18", 20" x 20", and 22" x 22" along with custom seat sized. It also features flip-up footrest and armrests so that you can get on and off of the scooter with any hassle. This heavy duty power wheelchair does not compromise when it comes to providing the most comfort, as well as support the weight of the rider flawlessly.
POWERFUL PERFORMANCE & BEST IN CLASS WARRANTY:
This Jazzy lineup is one of the most powerful electric wheelchairs currently available on the market, with a high weight capacity of 450 lbs, featuring dual enhanced in-line motors for greater torque, efficiency, range and performance. It can also travel up to 11 miles per charge and reach a maximum speed of 4.25 mph. With its 6" front and rear caster wheels, this scooter provides you with the ultimate stability when riding it. Besides all of that, this ride comes with top notch warranties available in the industry, including a full first year of in home services. So, if you're looking for a complete package, the Pride Jazzy 614 HD Power Chair is the one for you.
Jazzy 614 HD Benefits & Features:
- Dual enhanced in-line motors for greater efficiency, torque, range and performance
- 450 lbs. weight capacity
- 6” casters on front & rear for maximum stability
- Active-Trac® ATX Suspension for enhanced performance over more varied terrain
- Easy rear access to batteries
- Seating up to 24” W x 24” D
- Tool-less shroud removal
- Easy serviceability

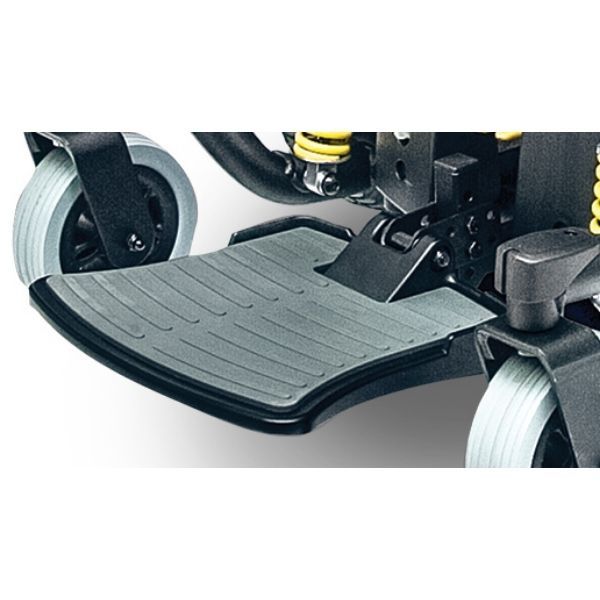

- Depth adjustable foot platform
**Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments
Pride Jazzy 614 HD Specifications:
Turning Radius: |
22.75" |
Weight Capacity: |
450 LBS |
Ground Clearance: |
2.25" |
Top Speed: |
4.25 mph |
Heaviest Piece: |
122 lbs. |
Maximum Incline Rating: |
6 º |
Battery Charge Distance: |
11.00 miles |
Drive Type: |
Mid Wheel Drive |
Foldable: |
No |
Disassembles: |
No |
Armrest Options: |
Height Adjustable Flip-Back |
Legrest Options: |
Footplate /Elevating Legrests /Swing-Away Legrests |
Seat Options: |
Reclining Back / High-Back Seat /Captain's Seat |
Seat Widths: |
20" / 22" |
Seat Depths: |
18" / 20" / 22" |
Seat to Floor Height: |
20.5 |
Maximum Seat to Floor Height: |
23.5" |
Overall Width: |
25.25" |
Overall Length: |
35.5" |
Joystick Options: |
Right / Left |
Dampening Adjustment: |
No |
Frame Type: |
Heavy-duty |
Batteries: |
Two 12 volt, 22NF batteries |
Batteries Included |
Yes |
Battery Charger Type: |
Off Board |
Drive Wheel Size: |
14" |
Anti-Tip Size: |
6" |
Caster Size: |
6" |
Rear Caster Size: |
6" |
Caster Type: |
Solid |
Base Weight: |
122.00 lbs. |
Standard Seat Weight: |
52.00 lbs. |
Battery Pack Weight: |
74.00 lbs |
Suspension |
Yes |
Handles Thresholds of 2" or More: |
No |
Expedited Shipping Available: |
No |
Product Weight |
240 lbs. |
Box 1 |
|
Shipping Weight: |
290.00 lbs. |
Length: |
33.00" |
Width: |
30.00" |
Height: |
20.00" |
Warranty Information for the Jazzy 614 HD
Warranty
5-Year Limited Warranty
For five (5) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
3-Year Limited Warranty
For three (3) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
13-Month Limited Warranty
For thirteen (13) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Electronic Assemblies, including:
Main Frame Assemblies, including:
Other Components, including:
13-Month Warranty
The batteries are covered by a separate thirteen (13) month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.
Note: Starting from date of product delivery, battery charge must be maintained to ensure warranty coverage. For mobility products which are not used regularly, or during periods of storage prior to and after purchase date, batteries must be charged once a week, for 24 hours. Failure to do so will void battery warranty.
6-Month Warranty - Lithium Ion Batteries
Lithium-Ion batteries are covered by a separate six (6) month warranty, provided by the battery manufacturer. Batteries are not guaranteed by Pride.
Warranty Exclusions
This warranty does not extend to those items which may require replacement due to normal wear and tear, including:
-
Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized IN ADVANCE, by Pride Mobility Products
Exclusions also include components with damage caused by:
Note: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period of time, or worn out through heavy use is not covered.
POWER CHAIRS/SCOOTERS
WARNING: This product can expose you to chemicals including lead and lead components, which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/furniture.
“*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.
