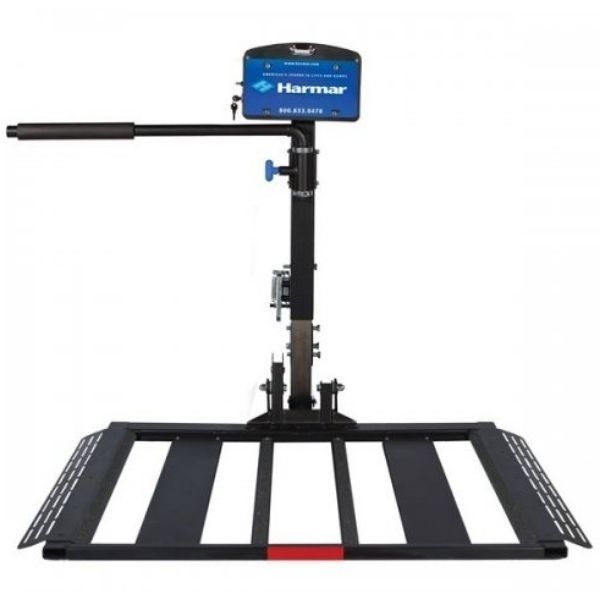

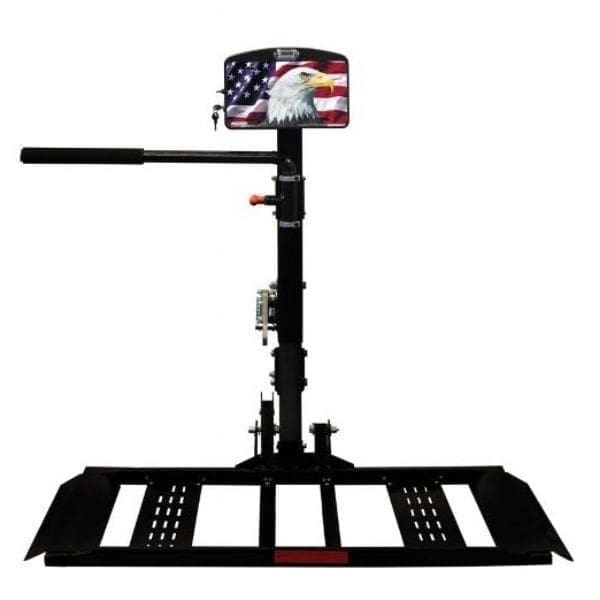

AL560XL Automatic Universal Power Chair Lift by Harmar

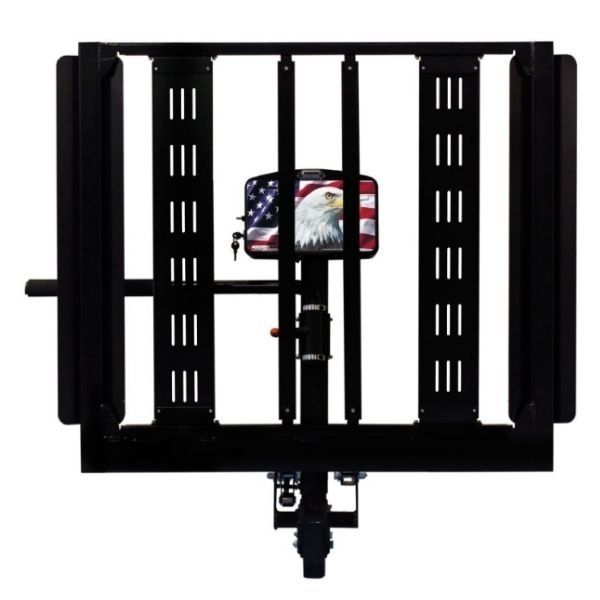

The AL560XL Automatic Universal Power Wheelchair lift by Harmar has an oversized platform measuring 32.5" x 38.5" and is adjustable to cater to the largest power chairs in the market. The lift is fully powered and folds automatically when unloaded. The one-switch operation makes it easy to use and comes with a drive on/off platform for mounting and dismounting from either side. Additionally, it features a padded hold-down arm that vertically adjusts to the seat height of your chair, securing it in place without requiring any modifications to your chair, but it must have flip-back arms.
AL560XL Automatic Benefits & Features:
-
Carries many popular power chairs
-
Padded hold-down arm conveniently secures power chair
-
No power chair modifications
-
Platform wheel cradles adjust to provide a snug, custom fit
-
Manual crank back up and license plate mount included
-
Swing-Away option available
-
Made in the USA
Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.
| Hitch Height: |
5" to 19" |
| Power Source: |
Battery Hardwired |
| Works With Hitch Size: |
Class II Hitch Class III Hitch |
| Professional Install Available: |
No |
| Service Contract Available: |
No |
| Operation: |
Power |
| Lifting Capacity |
350 lbs. |
| Recommended For: |
Full-Size Power Wheelchairs |
| Platform Size - Length |
38.5 in. |
| Platform Size - Width: |
32.5 in. |
| Installed Product Weight: |
115 lbs. |
| Type of Lift: |
Outside Lift |
| Warranty: |
3 Year Limited Warranty |
| Warranty - Transferable Warranty |
Yes |
| Product Weight: |
115 lbs |
| Box 1 |
|
| Shipping Weight: |
|
Warranty Information for the AL560XL Automatic Universal Power Chair Lift
HARMAR VEHICLE LIFT WARRANTY
Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.
This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
