AL003 Tilt n Tote by Harmar

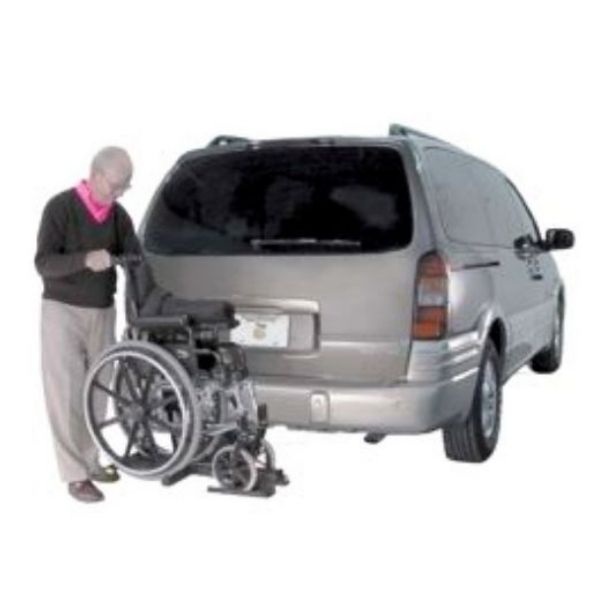

The Harmar AL003 Tilt 'n Tote Lift is the perfect solution for effortless loading and unloading of standard folding manual wheelchairs weighing up to 100 pounds. It boasts a unique hold-down arm that secures the wheelchair in place with just one handle release. No modifications to the chair are needed, thanks to the tilting joint feature that allows for easy roll-on and roll-off use. This lift comes with a Class I hitch adapter and stabilizer as standard, and it can also work with a ball mount hitch.
AL003 Tilt n Tote Benefits & Features:
- Carries manual wheelchairs
- Tilting joint for roll-on ease
- Unique, adjustable hold-down arm
- Folds down to allow access to tail and lift gate
- No wheelchair modifications necessary
- Folds up when not in use
Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.
| Hitch Height: |
5" to 19" |
| Works With Hitch Size: |
Class I Hitch Class II Hitch Class III Hitch Ball Mount |
| Professional Install Available |
No |
| Service Contract Available: |
No |
| Operation: |
Manual |
| Lifting Capacity: |
100 lbs. |
| Recommended For: |
Manual Wheelchairs |
| Installed Product Weight: |
32 lbs |
| Type of Lift: |
Outside Lift |
| Warranty: |
3 Year Limited Warranty |
| Warranty - Transferable Warranty: |
Yes |
| Product Weight: |
32 lbs |
| Box 1 |
|
| Shipping Weight: |
43.00 lbs. |
| Length: |
33.00" |
| Width: |
22.00" |
| Height: |
8.00" |
Warranty Information for the AL003 Tilt n Tote
HARMAR VEHICLE LIFT WARRANTY
Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.
This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
