Compass HD Bariatric Power Chair GP620M by Golden Technologies

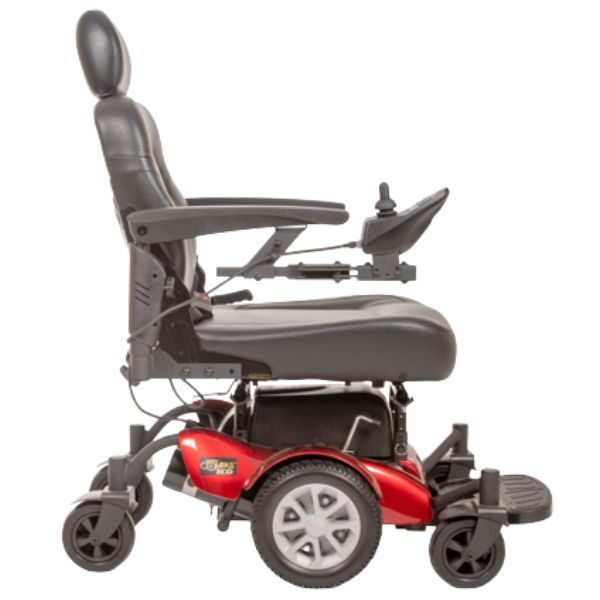

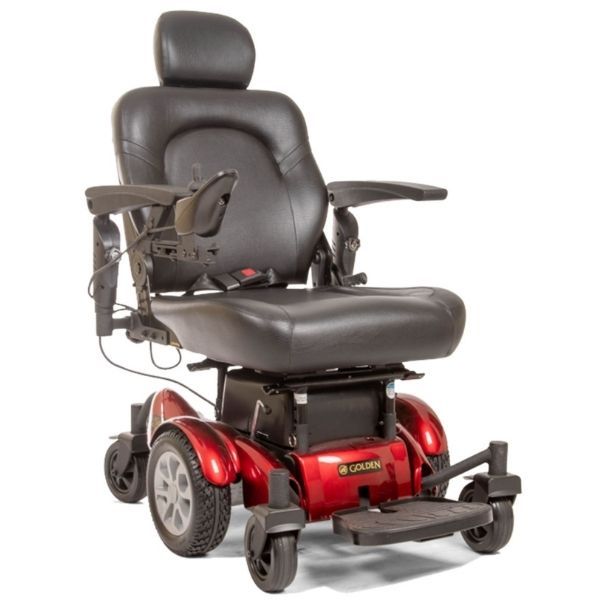

The Golden Technologies Golden Compass HD is a heavy-duty power chair designed for stability and a smooth ride on challenging terrain. It features a mid-wheel drive configuration and an improved chassis.
With a weight capacity of 450 lbs and a 20" turning radius, this mid-wheel drive power chair offers exceptional stability and maneuverability. Additionally, it comes with a comfortable captain's seat and an exclusive folding flat seat hinge design for easy transport.
The Golden Compass HD power wheelchair, like the standard model, is equipped with adjustable front and rear seat posts and padded flip-up armrests for added comfort. The easy-to-use sliding seat bracket and fully adjustable footplate allow you to customize the fit to your needs, making it possible to reach places you never thought possible with ease.
Golden Technologies Compass HD Benefits & Features:
- Standard captain’s seat with our exclusive fold-flat seat hinge design
- Optional seating includes ProFlex Seat and van/pan seat
- Exclusive slide seat mechanism for easy seat removal and attachment
- 450 lb. weight capacity

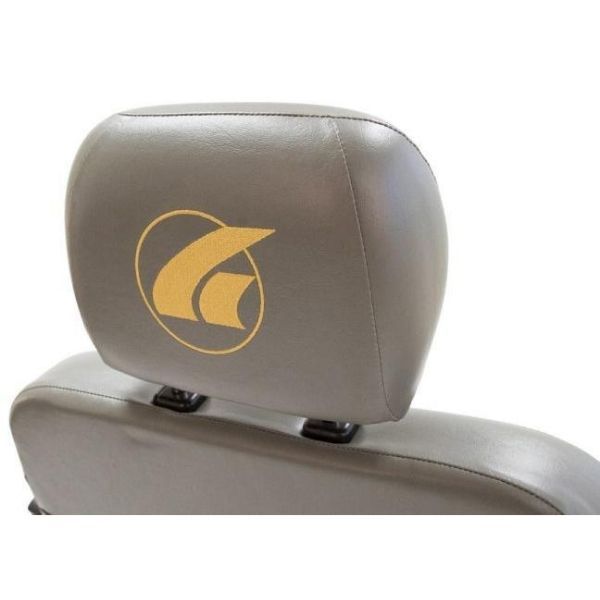

- Adjustable headrests and armrests

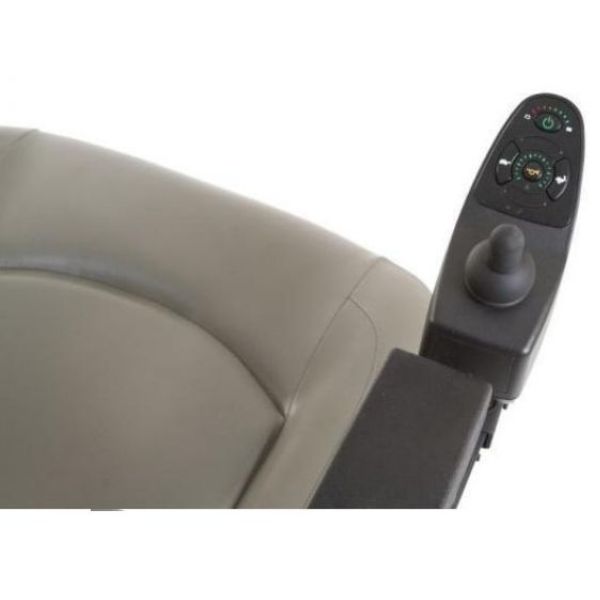

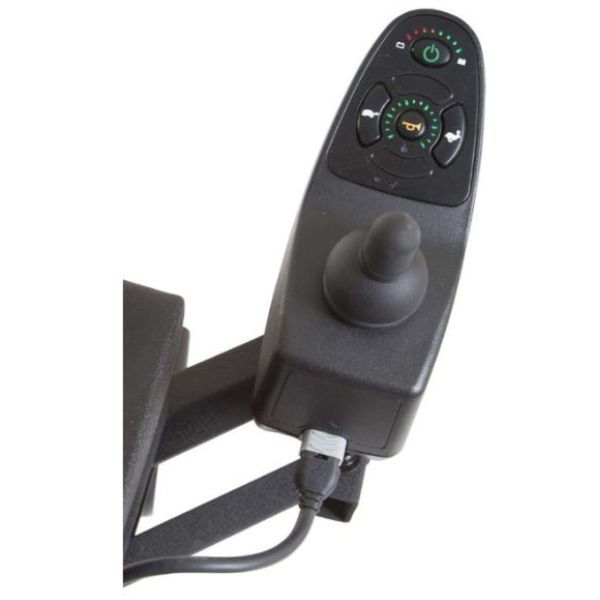

- 75 amp peak Dynamic Shark controller standard
- Off-board charger
- Accessories available: elevating leg rests, specialty leg supports, swing-away footrests, footplate extender
- Uses 22NF batteries
- Model Number: GP620M
Golden Technologies Compass HD Specifications:
| Quick-Ship: |
Yes |
| Turning Radius: |
20.00" |
| Tire Type: |
Foam Filled |
| Ground Clearance: |
3.50" |
| Top Speed:: |
4.00 mph |
| Heaviest Piece: |
101 lbs. |
| Maximum Incline Rating: |
6 º |
| Battery Charge Distance: |
12.00 miles |
| Drive Type: |
Mid Wheel Drive |
| Foldable: |
Yes |
| Disassembles: |
No |
| Armrest Options: |
Height Adjustable Flip-Back |
| Legrest Options: |
Footplate Elevating Legrests Swing-Away Legrests |
| Seat Options: |
Reclining Back Captain's Seat |
| Seat Widths: |
20"/22"/24" |
| Seat Depths: |
20" |
| Maximum Seat to Floor Height: |
23 |
| Overall Width: |
25.00" |

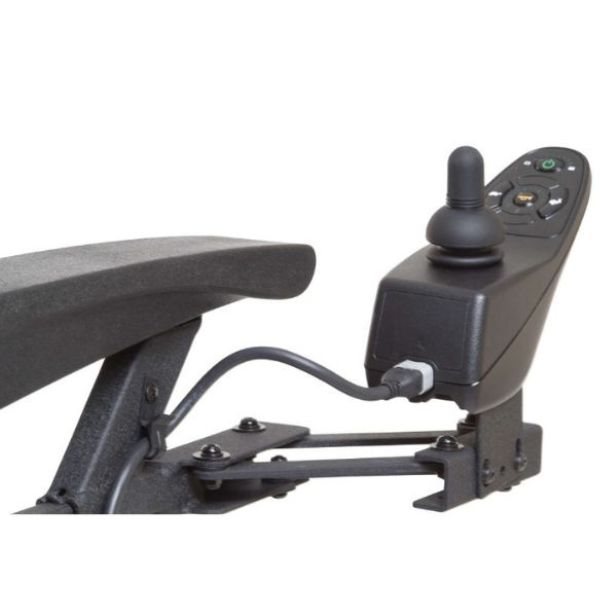

| Joystick Options: |
Right Swing-Away |
| Adjustable Angle Footplates: |
Yes |
| Dampening Adjustment: |
No |
| Frame Type: |
Heavy-duty |
| Batteries: |
2-NF22 |
| Batteries Included: |
Yes |
| Battery Charger Type: |
Off Board |
| Drive Wheel Size: |
10" |
| Caster Size: |
6" |
| Rear Caster Size: |
6" |
| Base Weight: |
226.00 lbs. |
| Standard Seat Weight: |
51.00 lbs. |
| Battery Pack Weight: |
37.00 lbs./pack |
| Weight Without Batteries: |
155.00 lbs. |
| Controller Type: |
Dynamic 75 Amp Remote |
| Suspension: |
No |
| Expedited Shipping Available: |
No |
| Product Weight: |
209 lbs. |
| Box 1 |
|
| Shipping Weight: |
210.00 lbs. |
| Length |
40.00" |
| Width: |
25.00" |
| Height: |
18.00" |
| Width: |
25.50" |
| Height: |
24.50" |
Warranty Information for the Compass HD
Golden Technologies Limited 5-Year Warranty
If you have a problem with your scooter or power wheelchair, simply call one of our expert customer service representatives, and they will arrange for an authorized technician to diagnose/repair your scooter or power wheelchair. Electricwheelchairsusa.com will have the parts shipped directly to the technician, or your residence – free of charge. Every effort will be made to return your mobility equipment to working condition in the shortest time possible.
The following parts will be repaired or replaced at our discretion, free of charge, for the following allowable time periods from the date of purchase.
5-Years:
Frame
1 Year:
Drive Train
Motor/Electronics
All of the previous parts are covered for defects in material and/or workmanship. Any abuse or intentional misuse of the scooter will void the warranty.
