AL815CC Crew Cab 150 Speed Lift by Harmar

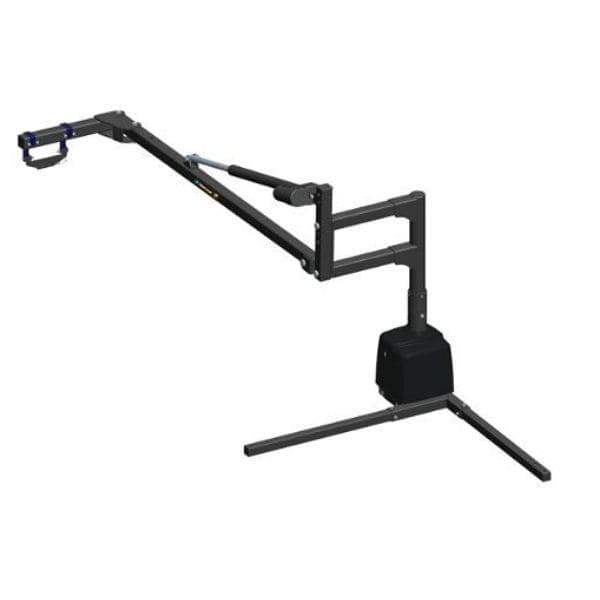

The AL815CC Crew Cab 150 Speed lift by Harmar is a side-loading option designed for manual wheelchair transportation in the bed of a pickup truck. It allows for installation on either the driver's or passenger's side, providing flexibility in wheelchair placement. With a lifting capacity of 135 lbs, the arm can be adjusted from 47" to 67" in length.

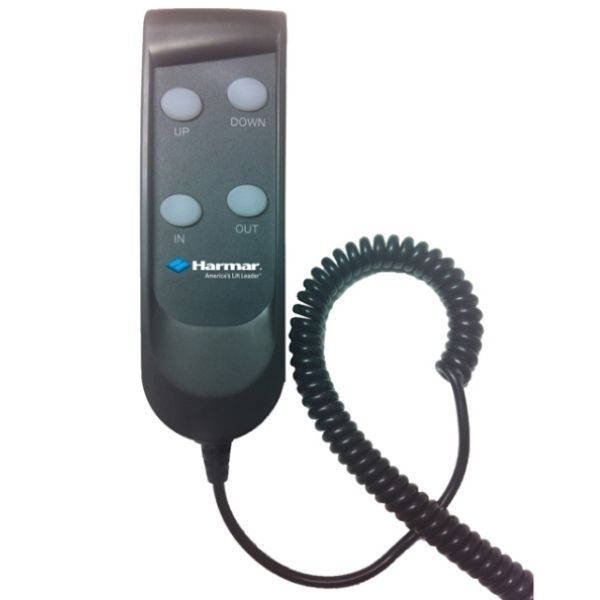

Control the lift from inside your truck with the hand control and dash-mounted switch included. An anti-rotate strap system prevents wheelchair spinning during loading and unloading. The weather-resistant lift features an easy-to-use four-button hand control for effortless operation.
WHAT YOU SHOULD KNOW WHILE ORDERING THIS PRODUCT:
When placing your order, be sure to specify the side of the truck where the lift will be installed and ensure that the distance from the bottom of the truck bed to the top of the side does not exceed 24 inches.
AL815CC Benefits & Features:
- Delivers chair close to driver or passenger side door
- Powered lifting and rotation
- Only two motors to control with removable hand control
- Docking device included
- In-cab remote control extension included
-
Twice the speed of the AL825CC
- Longer arm for crew cabs (reduced capacity)
- Mounts on either side of the vehicle
- New Hand Control
Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.
| Power Source: |
Hardwired |
| Professional Install Available: |
No |
| Service Contract Available: |
No |
| Operation: |
Power |
| Lifting Capacity: |
135 lbs |
| Recommended For: |
Manual Wheelchairs |
| Installed Product Weight |
199 lbs |
| Type of Lift |
Outside Lift |
| Warranty: |
3 Year Limited Warranty |
| Warranty - Transferable Warranty |
Yes |
| Product Weight: |
115 lbs |
| Box 1 |
|
| Shipping Weight: |
97.00 lbs |
| Length: |
39.50" |
| Width: |
21.00" |
| Height: |
13.00" |
| Box 2 |
|
| Shipping Weight: |
50.00 lbs. |
| Length: |
70.00" |
| Width: |
17.25" |
| Height: |
8.00" |
Warranty Information for the AL815CC Crew Cab 150 Speed
HARMAR VEHICLE LIFT WARRANTY
Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.
This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
