AL690 Side-Door Hybrid Platform by Harmar

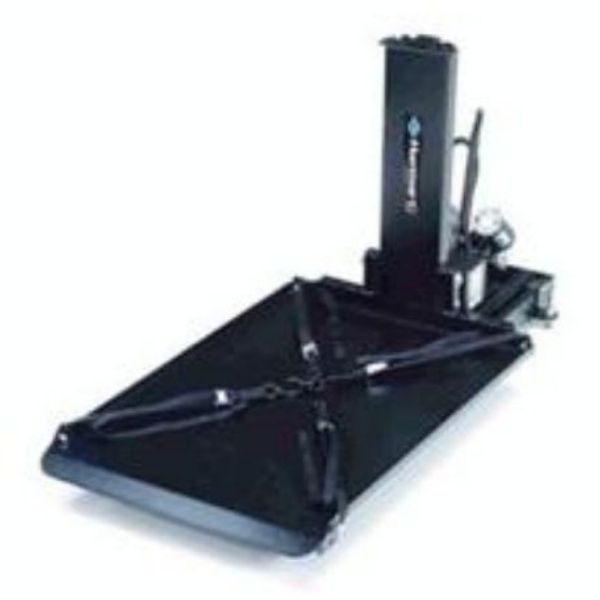

The Harmar AL690 is a hybrid platform lift designed for side-door loading, offering a convenient and efficient solution for transporting small mobility scooters and power wheelchairs in minivans or full-size vans. With its fully automatic remote control operation, the lift requires no modifications or special mounting devices. Simply drive the mobility aid onto the platform, secure it with straps, and let the lift do the rest. The AL690 is durable, powerful, and easy to use, making it an ideal choice for those seeking an effective transportation solution for their mobility needs.
AL690 Side-Door Benefits & Features:
-
Carries most standard power chairs and shorter scooters
-
Weatherproof, remote hand control (wireless option available)
-
No drilling required in most vehicles; connects to existing 2nd row seat hardware
-
No power chair or scooter modifications required
-
Third row seat spared in most applications
-
Delivers power chair or scooter close to driver or passenger door
-

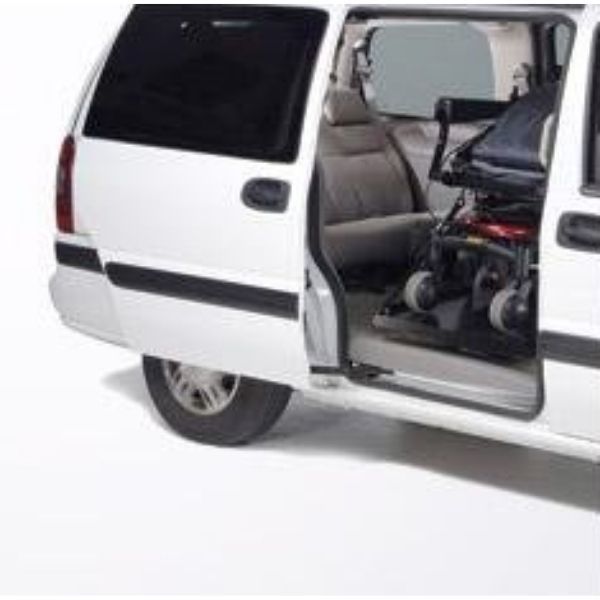

Works with most minivans and SUVs
Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.
| Power Source: |
Hardwired |
| Professional Install Available: |
No |
| Service Contract Available: |
No |
| Operation: |
Power |
| Lifting Capacity: |
275 lbs |
| Recommended For: |
Travel Scooters Full-Size Power Wheelchairs |
| Platform Size - Length |
21.5 - 28.5 in |
| Headroom Required: |
32" |
| Platform Size - Width |
38 in |
| Installed Product Weight |
199 lbs |
| Type of Lift |
Inside Lift |
| Warranty: |
3 Year Limited Warranty |
| Warranty - Transferable Warranty |
Yes |
| Depth Required |
55.00" |
| Platform Height: |
4.50" |
| Vertical Reach: |
33.50" |
| Product Weight: |
199 lbs. |
| Box 1 |
|
| Shipping Weight: |
255.00 lbs. |
| Length |
49.00" |
| Width: |
22.00" |
| Height: |
35.00" |
